New “AGpoint” Screw Launched to Dramatically Reduce Cross-Threading

New “AGpoint” Screw Launched to Dramatically Reduce
Cross-Threading
～ Unique patent-pending tip design helps improve assembly productivity
and reduce product waste ～



NITTOSEIKO CO., LTD. (President: Makoto Araga; Head Office: 20 Umagahata, Ikura-cho, Ayabe, Kyoto, Japan; Tokyo Stock Exchange Prime Market; https://global.nittoseiko.com/) is pleased to announce the launch of its anti- cross-threading screw, “AGpoint,” on November 1, 2026. Our evaluation tests showed that the occurrence rate of cross-threading during screw fastening was reduced by 91% compared with conventional machine screws. A patent application has been filed for the product’s unique anti-cross threading tip profile.



Background to Development

In a wide range of assembly processes, including equipment for AI servers and electronic devices, fastening failures can occur due to cross-threading between male and female threads. Although cross-threading does not occur frequently, once it occurs, the product may be difficult to rework and may have to be scrapped. Production line stoppages caused by cross-threading can also reduce productivity.

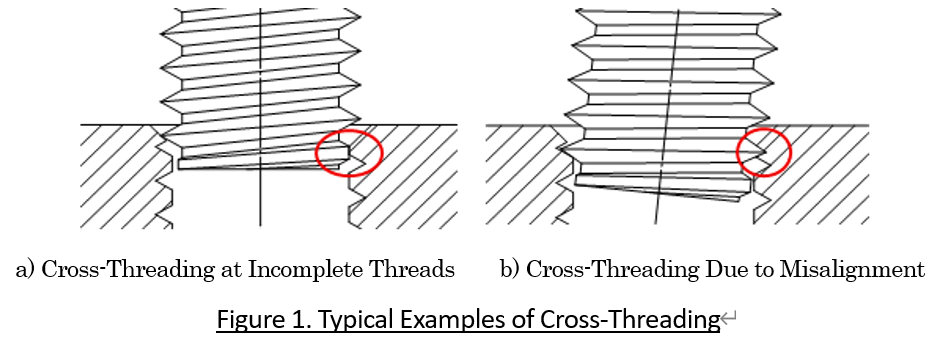

There are many types of cross-threading, but our investigation found that most cases can be broadly classified into the two types shown in Figure 1. There has been a demand from assembly sites for a screw that can comprehensively prevent these types of cross-threading. In response to these needs, we developed a new anti-cross-threading screw, “AGpoint.”




Product Overview and Features

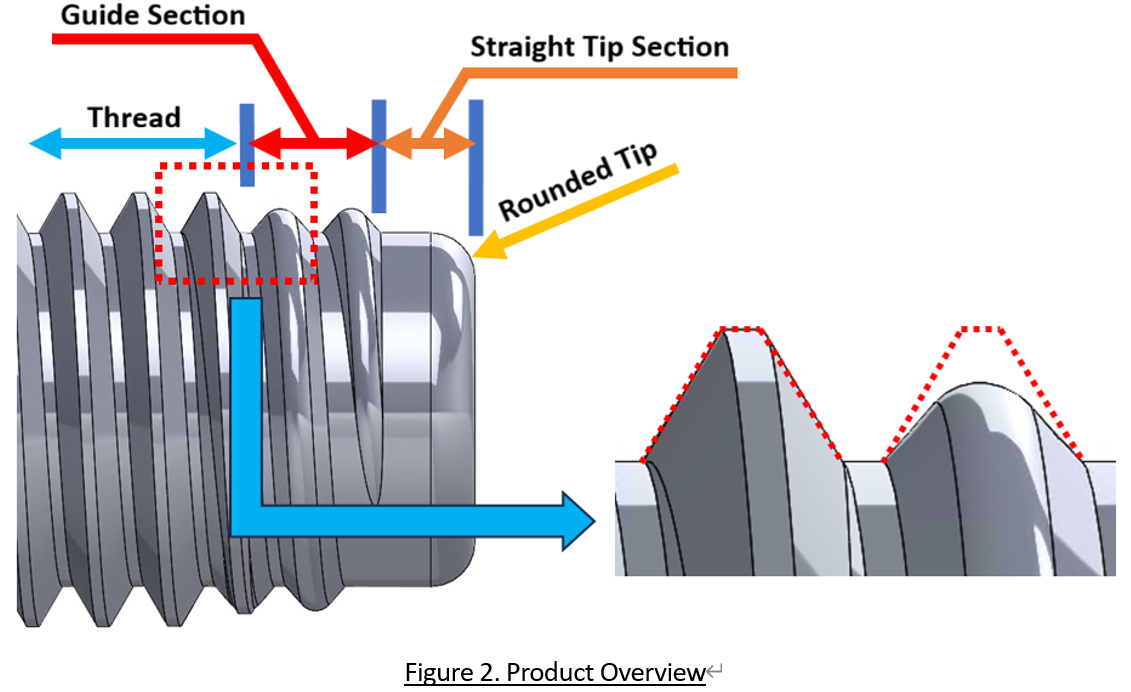

The “AG” in “AGpoint” stands for Alignment Guide. As the name suggests, AGpoint features a unique tip profile designed to enhance its anti-cross-threading performance during screw fastening (see Figure 2).　The AGpoint tip profile consists of three elements: (1) Rounded Tip, (2) Straight Tip Section, and (3) Guide Section. Each element plays a specific role, as described below, allowing AGpoint to reduce the occurrence of both types of cross-threading described earlier.

　① Rounded Tip — Improves insertion into the female thread and facilitates alignment.
　② Straight Tip Section — Corrects thread orientation at the start of engagement,
　　 helping to reduce cross-threading due to misalignment.
　③ Guide Section — Corrects the screw’s orientation while helping to reduce cross-threading
　　 in the incomplete thread section.




Benefits

・Reduces the occurrence rate of cross-threading by 91% compared with conventional machine screws
　(JIS B 1111 cross-recessed machine screws with a blunt point)

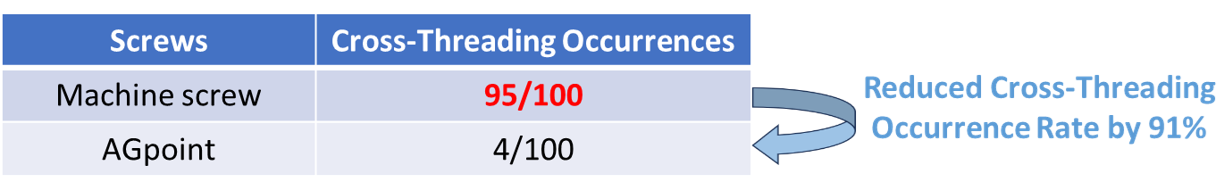

　① Test Results

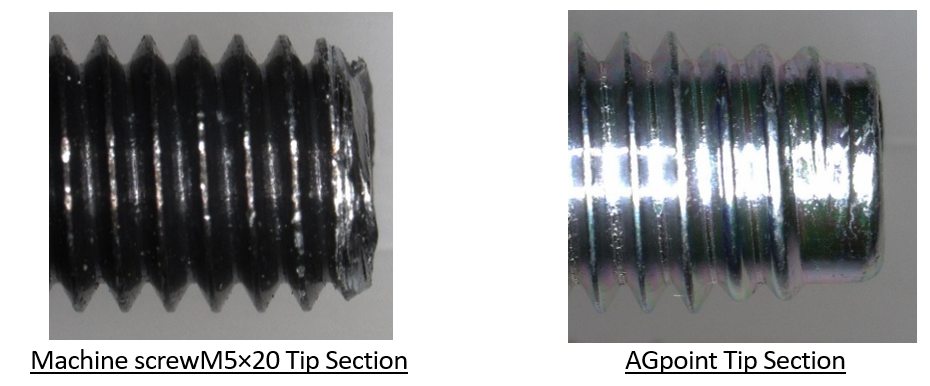

　② Screws Used in the Test

　　 － M5 × 20 cross-recessed machine screws and AGpoint of the same dimensions.

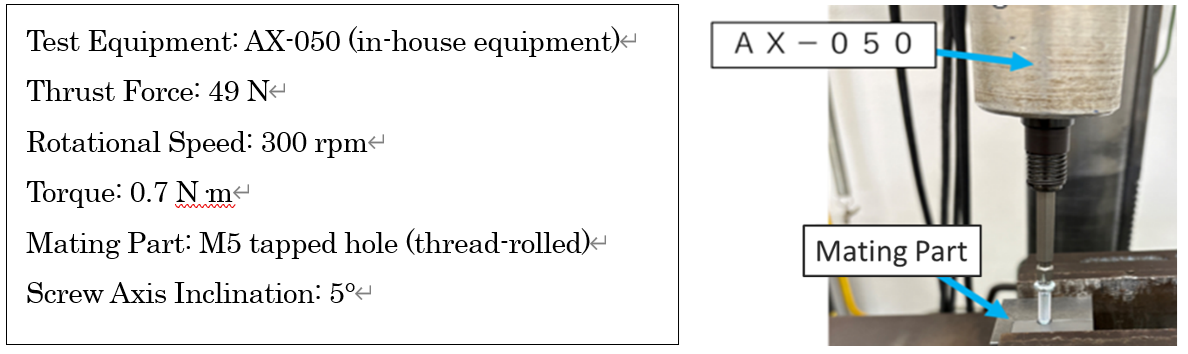

　③ Screw Fastening Conditions

　　 － As shown in the table below, the screw axis was tilted by 5°
　　　  to increase the likelihood of cross-threading.


・This product helps reduce rework and product waste caused by fastening defects,
　contributing to stable assembly quality and improved productivity.




Product Specifications

Sizes ・・・・・ Nominal diameter: M3–M6
Materials ・・・ Steel, copper, aluminum, etc.
*Please feel free to contact us regarding other specifications not listed above.




Future Plans

(1) Launch Date：November 1, 2026
(2) Sales Target：2 million screws per month
(3) Target Industries：IT infrastructure, including AI servers and data centers; automotive;
　　consumer electronics; precision equipment; and other related industries.
